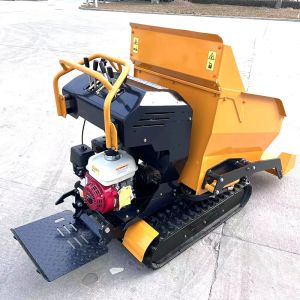

Epa Mini Crawler Dumper Transporter Rubber Track Dumper 300kg 500kg 1000kg
Description of HT5050 Mini Crawler Dumper:
The crawler transporter is a dump truck made of rubber crawler chassis or steel crawler chassis. manufacturer quality assurance, long service life, high efficiency.
Features of HT5050 Mini Crawler Dumper:
1. wide range of use, simple structure, smooth transmission, labor-saving operation, easy to realize automatic control.
2. Single-cylinder power system, low fuel consumption. Large traction, good climbing grip performance, and strong transportation capacity.
Technical parameters of HT5050 Mini Crawler Dumper :
| Model | 5030 | 5050 | 5050A | 5100 |
| Engine | Loncin 96CC | Honda GX-200 | Loncin 270CC | Koop KD192F |
| Cooling mode | Air-cooled | Air-cooled | Air-cooled | Air-cooled |
| Fuel | Gasoline | Gasoline | Gasoline | Gasoline |
| Emission | Euro5 | Euro 5 | Euro 5 | Euro 5 |
| Transmission | Forward:6/Rear:2 | / | Forward:6/Rear:2 | Forward:3/Rear:1 |
| Speed type | High-Low | / | High-Low | / |
| Loading capacity | 300kg | 500kg | 500kg | 1000kg |
| Box length | 1045mm | 816mm | 816mm | 1250mm |
| Box width | 630mm | 680mm | 680mm | 890mm |
| Box depth | 320mm | 620mm | 620mm | 480mm |
| Box type | Split type | Integrated/one-piece | Integrated/one-piece | Integrated/one-piece |
| Track width | 180mm | 180mm | 180mm | 230mm |
| Flow of pump | | 6L/min | 3L/min | |
| Mini Dumper weight | 281kg | 413kg | 316kg | 682KG |
| Overall dimension(mm) | 1980*820*1060 | 1680*840*1275 | 1750*700*1080 | 2310*950*1345 |
| Start mode | Manual | Manual | Electric | Electric |
| Driving type | Mechanical | Hydraulic | Mechanical | |
| Steering mode | Manual | Hydraulic | Manual | Lever type |
| Unload mode | Manual | Hydraulic | Hydraulic | Hydraulic |
Application of HT5050 Mini Crawler Dumper:
It is especially suitable for short-distance transportation of various complex terrains such as mountains, paddy fields, deserts, and hills.

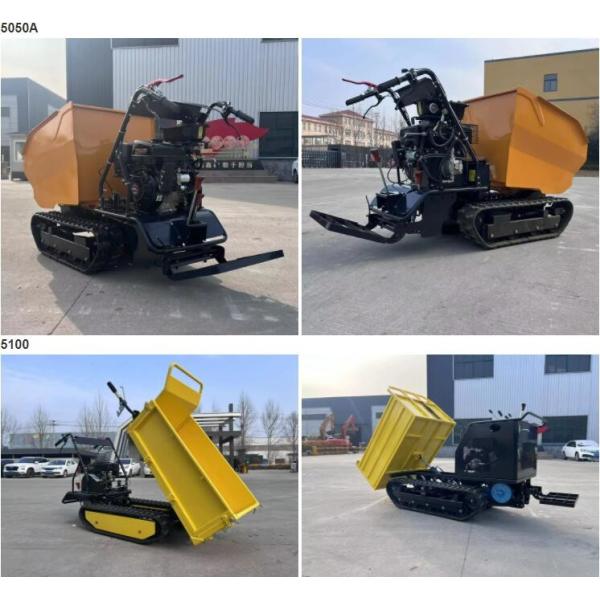

Images of HT5050 Mini Crawler Dumper:
